DDM Optical SFP+ Optical Transceiver 10g Sfp+ Bidi 1490/1550nm 80km

Name: DDM Optical SFP Optical Transceiver 10g Sfp Bidi 14901550nm 80km
Brand: Sourcelight or OEM
Price: 1 USD

Quality DDM Optical SFP+ Optical Transceiver 10g Sfp+ Bidi 1490/1550nm 80km for sale

Brand Name : Sourcelight or OEM

Model Number : 10g BIDI 80km

Certification : CE/FCC/RoHS/TUV/UL

Place of Origin : Shenzhen,China

MOQ : 1PCS

Price : Get Latest Price

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 200PCS Per Week

Delivery Time : Shipped in 1 days after PO confirmed

Packaging Details : 10PCS or 20PCS Plastic trays; 1pc Independent Box.

Product name : 10g BIDI 80km

Wavelength : 1490/1550nm

Distance : 80km for SMF

DDM DOM : YES

Sensitivity : -24dBm

TX Power : +1~+6dBm

Contact Now

10g Sfp+ Bidi 1490/1550nm 80km DDM Optical Transceiver Module

Overview

10G SFP+ BIDI 80KM transceiver is designed to be compliant with SFF-8472 and SFP+ MSA.The module data link up to 80km in 9/125um single mode fiber.

Features

SFP MSA package with single LC connector
Typical bidi 1490/1550nm and 1550nm/1490nm for commission
APD receiver for high sensitivity
Very low EMI and excellent ESD protection
Support 9.95Gb/s to 11.1Gb/s serial optical interface
Up to 80km distance
Below <1.5W power consumption

Parameter

Package (Form Factor)	SFP+ BIDI 80KM
Data Rate (typical)	10.3 Gbps
Centre Wavelength	Tx1490nm/Rx1550nm
Distance	80km
Diagnostics	Digital Monitor
Transmitter	DFB Laser
Receiver	APD photo detector
TX Output Power	+1~+6(dBm)
RX Sensitivity	-24(dBm)
Voltage Supply	3.3v(typical)
Connector	Simplex LC UPC

Application

10GBASE-BX 10.3125Gb/s Ethernet
10GBASE-BX 9.953Gb/s Ethernet
SONET OC-192 &SDH STM I-64.1

DDM Optical SFP+ Optical Transceiver 10g Sfp+ Bidi 1490/1550nm 80km

Competitive advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery

Product Tags:

sfp+ transceiver module

10gbase sfp+ modules

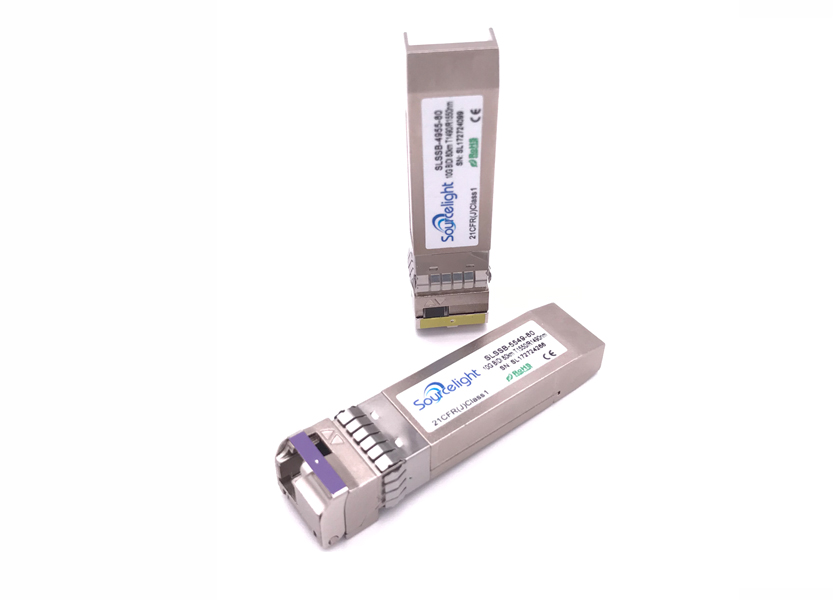

DDM Optical SFP+ Optical Transceiver 10g Sfp+ Bidi 1490/1550nm 80km Images
